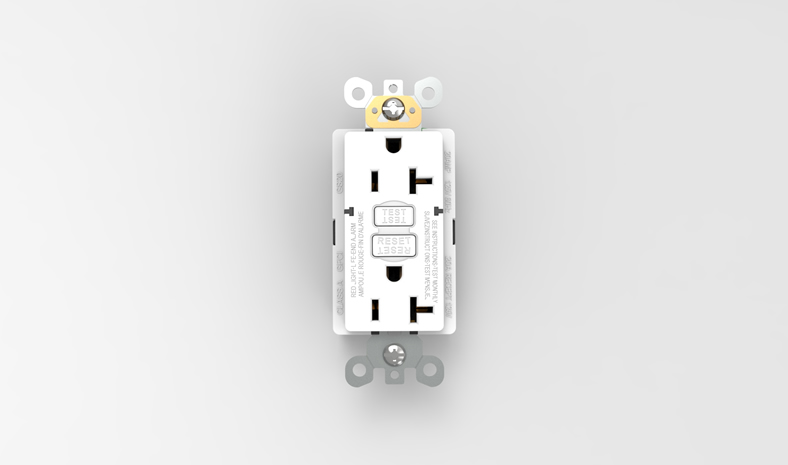

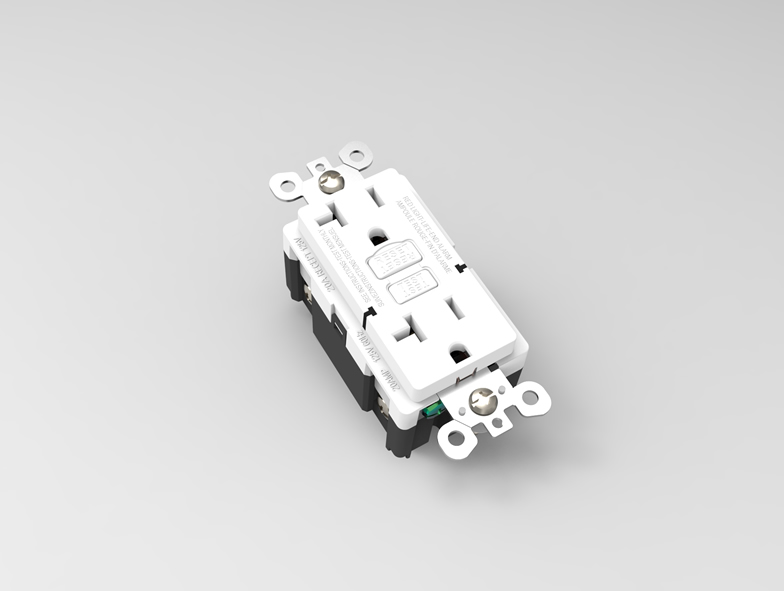

Model No.:GS20

Product Name:20A/125V GFCI Receptacle


Description:

1. Constructed with premium high-impact resistant PC materials and rational structure design,

    ensures superior strength and durability.

2. The self-test GFCI automatically detects an internal test every 1-20 minutes. The red indictor

    light will flash once quickly during the detection. After pressing the RESET button , the green

    indicator light will be on, indicating that the device is working normally. If the device fails the

    test,the red indicator light will stay on, or the device automatically trips, reminding the user that the

    device should be replaced.

3. This device has triple detection function: ① Automatic detection; ② Manual testing by the TEST button;

    ③ Tested by the RESET button.

4. Flame retardant grade rated V-0, exceeds the flame retardant grade specified by UL.









Certificate: cULus file No. E524399.

Standards: Meets 2018 UL 943 and CSA C22.2 NO. 144.1-16 requirements.



Specifications:

Product Size: 105*42*42.5mm

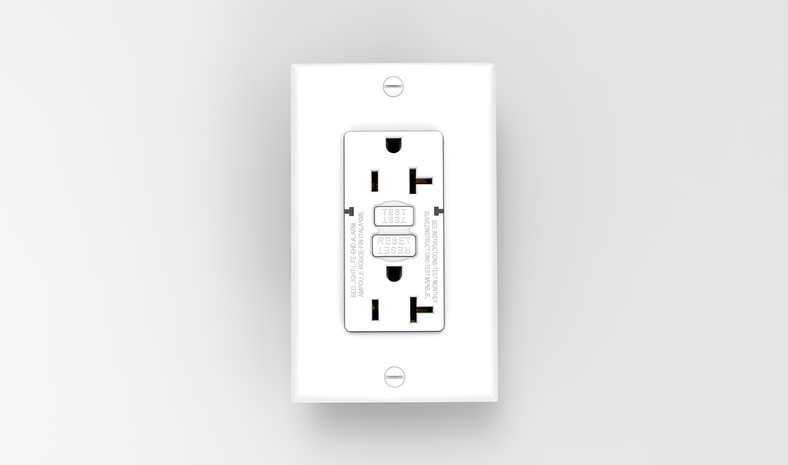

Product Weight: 120g (wall plate and installing screws included)

Rated parameters: 20A/125Vac/60Hz

Termination: Back & Side

Ground fault action current: 4-6mA

Trip Threshold: 4-6mA

Trip Time: <25mS

Flame retardant grade: V-0

Auto-Monitoring Function Test Repeat Test Interval: 1S

Wires: 12-14AWG

Operation Temperature: -35℃~66℃
